12038 7 impellers 220V
65 ~ 104CFM
产品中心 Product center
联系我们 Contact Us
中国销售部
销售专线：86-13682689090
86-755 27656335 27656878
传 真： 86-755 27648519
邮 箱：info@szbestfan.com
地 址：深圳市宝安区石岩镇洲石路万大工业区D栋1.3.4楼
销售专线：86-13682689090
86-755 27656335 27656878
传 真： 86-755 27648519
邮 箱：info@szbestfan.com
地 址：深圳市宝安区石岩镇洲石路万大工业区D栋1.3.4楼
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
12038B2HL |
Ball |
220-240 |
50/60 |
0.14/0.12 |
21/18 |
2550/2700 |
95/104 |
2.70/2.95 |
7.0/6.3 |
43/46 |
|
12038B2HT |
Ball |
220-240 |
50/60 |
0.14/0.12 |
21/18 |
2550/2700 |
95/104 |
2.70/2.95 |
7.0/6.3 |
43/46 |
|
12038B2ML |
Ball |
220-240 |
50/60 |
0.10/0.09 |
15/14 |
2400/2200 |
90/80 |
2.55/2.27 |
6.0/3.5 |
41/39 |
|
12038B2MT |
Ball |
220-240 |
50/60 |
0.10/0.09 |
15/14 |
2400/2200 |
90/80 |
2.55/2.27 |
6.0/3.5 |
41/39 |
|
12038B2LL |
Ball |
220-240 |
50/60 |
0.09/0.08 |
13/12 |
2100/1900 |
75/70 |
2.12/1.98 |
3.6/3.0 |
37/33 |
|
12038B2LT |
Ball |
220-240 |
50/60 |
0.09/0.08 |
13/12 |
2100/1900 |
75/70 |
2.12/1.98 |
3.6/3.0 |
37/33 |
|
12038S2HL |
Sleeve |
220-240 |
50/60 |
0.13/0.11 |
19/17 |
2500/2600 |
92/97 |
2.60/2.75 |
6.6/5.8 |
42/45 |
|
12038S2HT |
Sleeve |
220-240 |
50/60 |
0.13/0.11 |
19/17 |
2500/2600 |
92/97 |
2.60/2.75 |
6.6/5.8 |
42/45 |
|
12038S2ML |
Sleeve |
220-240 |
50/60 |
0.08/0.07 |
12/11 |
2250/1900 |
82/65 |
2.32/1.70 |
4.4/2.6 |
39/33 |
|
12038S2MT |
Sleeve |
220-240 |
50/60 |
0.08/0.07 |
12/11 |
2250/1900 |
82/65 |
2.32/1.70 |
4.4/2.6 |
39/33 |
|
12038S2LL |
Sleeve |
220-240 |
50/60 |
0.07/0.06 |
11/10 |
2050/1750 |
74/60 |
2.10/1.84 |
3.9/2.1 |
35/30 |
|
12038S2LT |
Sleeve |
220-240 |
50/60 |
0.07/0.06 |
11/10 |
2050/1750 |
74/60 |
2.10/1.84 |
3.9/2.1 |
35/30 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

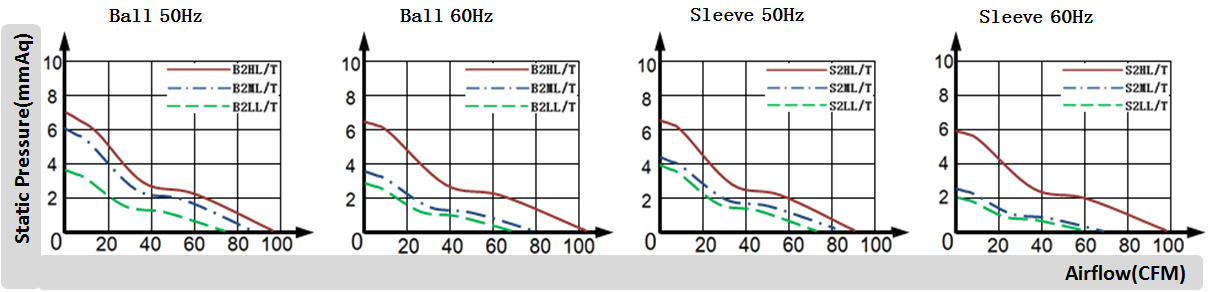

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
