11025 220V
29 ~ 51 CFM
产品中心 Product center
联系我们 Contact Us
中国销售部
销售专线：86-13682689090
86-755 27656335 27656878
传 真： 86-755 27648519
邮 箱：info@szbestfan.com
地 址：深圳市宝安区石岩镇洲石路万大工业区D栋1.3.4楼
销售专线：86-13682689090
86-755 27656335 27656878
传 真： 86-755 27648519
邮 箱：info@szbestfan.com
地 址：深圳市宝安区石岩镇洲石路万大工业区D栋1.3.4楼
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
11025B2HL |
Ball |
220-240 |
50/60 |
0.10/0.08 |
18/14 |
2250/2550 |
47/51 |
1.33/1.44 |
3.8/4.0 |
33/36 |
|
11025B2ML |
Ball |
220-240 |
50/60 |
0.06/0.05 |
10.1/8.3 |
2050/2000 |
42/42 |
1.20/1.20 |
3.0/2.5 |
30/30 |
|
11025B2LL |
Ball |
220-240 |
50/60 |
0.04/0.03 |
7/6 |
1850/1650 |
38/33 |
1.08/0.93 |
2.3/1.5 |
28/26 |
|
11025S2HL |
Sleeve |
220-240 |
50/60 |
0.10/0.08 |
18/14 |
2100/2300 |
42/52 |
1.20/1.47 | 3.0/3.6 |
31/33 |
|
11025S2ML |
Sleeve |
220-240 |
50/60 |
0.06/0.05 |
10/8.3 |
1900/1750 |
42/38 |
1.20/1.08 |
2.4/2.0 |
29/28 |
|
11025S2LL |
Sleeve |
220-240 |
50/60 |
0.05/0.04 |
8/6.8 |
1600/1400 |
33/29 |
0.98/0.82 |
1.8/1.3 |
26/22 |
All model could be customized. Please contact with YYC Sales. Safety: CE/CCC
Specifications are subject to change without notice.

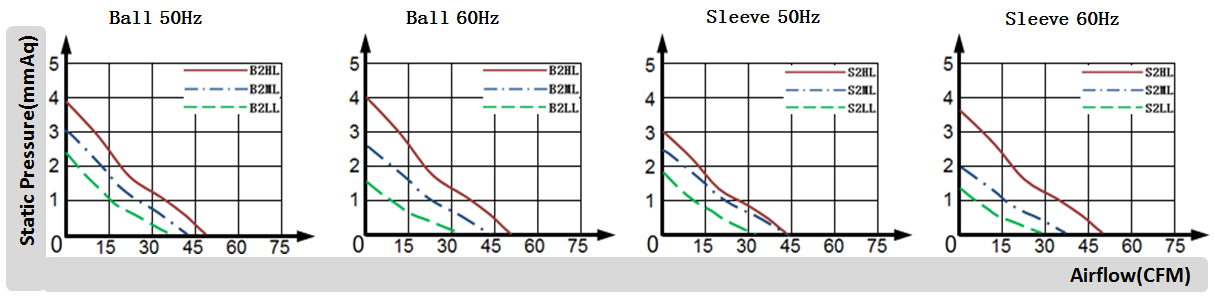

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
