您的位置:首页 >产品中心 > 新款风扇 > 92 x 92 x 38mm

9238 115/220V Ya-cool
61 ~ 70 CFM
Specification
Model
Bearing
Voltage
Freq
Current
Power
Speed
 Air Flow
Static
Pressure
Noise
VAC
Hz
A
W
RPM
CFM m3/min
mm H2O
dB-A
9238B2HL
Ball
220-240
50/60
0.13/0.10
15/11
2800/3300
40/50
1.15/1.42
5.9/8.3
38/43
9238B2HT
Ball
220-240
50/60
0.13/0.10
15/11
2800/3300
40/50
1.15/1.42
5.9/8.3
38/43
9238B1HL
Ball
115
50/60
0.25/0.18
15/11
2800/3300
40/47
1.18/1.33
5.5/7.4
38/43
9238B1HT
Ball
115
50/60
0.25/0.18
15/11
2800/3300
40/47
1.18/1.33
5.5/7.4
38/43

All model could be customized. Please contact with YYC Sales.                                           Safety:UL/TUV/CE/CCC

Specifications are subject to change without notice.

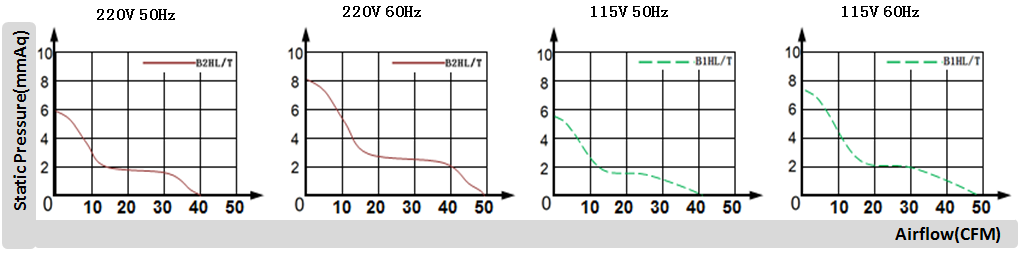

Air Flow-Static Pressure Characteristics


Frame: Aluminum alloy

Impeller: PBT Plastic

Protected: Impedance protected

Connection: Lead Wire or Terminals

Ball Bearing: -20°C to +70°C

Sleeve Bearing: -10°C to +70°C

Package: 40PCS/CTN
