您的位置:首页 >产品中心 > 交流风扇 > 150 X 150 X 51mm

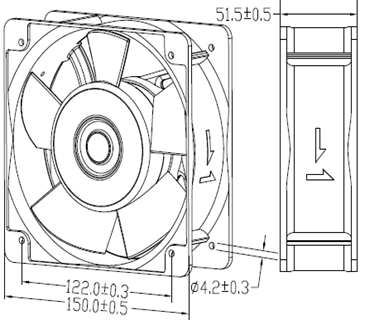

15050Z 5 impellers 380V
170CFM
Specification
Model
Bearing
Voltage
Freq
Current
Power
Speed
 Air Flow
Static
Pressure
Noise
VAC
Hz
A
W
RPM
CFM
m3/min
mm H2O
dB-A
15050B3HLZ
Ball
380 50
0.12
33
2700
170
4.81
10.6
56
15050B3HTZ
Ball
380
50
0.12
33
2700
170
4.81
10.6
56
15050S3HLZ
Sleeve
380
50
0.12
33
2650
166
4.7
10.2 55
15050S3HTZ
Sleeve
380
50
0.12
33
2650
166 4.7
10.2
55

All model could be customized. Please contact with YYC Sales.                                                  Safety:   CE/CCC

Specifications are subject to change without notice.


Air Flow-Static Pressure Characteristics



      Frame: Aluminum alloy

  Impeller: PBT Plastic

  Protected: Impedance protected

  Connection: Lead Wire or Terminals

  Ball Bearing: -20°C to +70°C

  Sleeve Bearing: -10°C to +70°C

  Package:20PCS/CTN
